Goldsmith machinery & tools

• KEY CHARACTERISTICS:


  • Due to the molten alloy being stirred, medium frequency gives alloys a high degree of homogeneity.

  • With an LED display, buttons are simple to use and access.

  • Adjustable power.

  • A higher power factor.

  • Industry-leading MO Cortex microcontroller controlling the furnace.

  • Temperature controllable for melting.

  • Automatic fault finding and visualization.

  • To prevent accidents and ensure uniform pouring, a tilting mechanism is motorized.

  • Fast melting with a strong induction generator.

  • Minimal upkeep is necessary.

Small amounts of metal, such as 3 or 5 kg, are melted using A03 vacuum casting machines.

A graphical user interface with LCD display that can store up to 100 channels of timing and working temperatures simplifies all operations.

Our furnaces feature two heating chambers that operate with separate heating zones and temperature settings.

A tubular frame and panels with louvres for air exchange are used to construct furnaces. General maintenance interventions are easier with a tubular system.

Heating muffles are made of resistance and unique, highly thermally efficient refractory insulating panels. Strong temperature changes can be handled by a special heating chamber made of stainless steel.

Due to belt movement, internal sliding blocks prevent chamber wear and tear. Water is used to cool the cooling chamber. The chambers are held together by a flange, and a nozzle on it allows gas to enter. In order to improve de-oxidation, two burners are placed in front of the tunnel's two ends.

Our annealing furnaces are constructed of panels with Louvres for air exchange and a tubular frame. General maintenance interventions are easier with a tubular system.

Heating muffles are made of resistance and unique, highly thermally efficient refractory insulating panels. Strong temperature changes can be resisted by special stainless steel heating chambers.

Protection gas enters the chamber through nozzles. The de-oxidation process is improved by a burner placed in front of the chamber to prevent oxygen entry. Inside is a shovel made of stainless steel.

When annealing metal, you simply push the pale to the bottom of the cooling chamber and drop it into the water tub for instant cooling (or leave it lying in the cooling chamber to cool, taking some time). The tub's treated material is removed either manually or (optionally) with a pneumatic piston.

MELTING Furnace iD series tilting The components of the static tilting furnaces are a swivel head on which the heating inductor is mounted and two flexible copper water-cooled cables connecting it to the MF induction.

The solid aluminum frame holding the medium frequency induction circuit with fast melting speed is surrounded by powder-coated panels.

The rotation is on two points by a motor acting on a tree where they placed two pulleys, and the swivel head is constructed of panels made of aluminum plates and Sindanio asbestos-free panels mounted on a stable base.

All of this is managed by a rollover and emergency control panel.

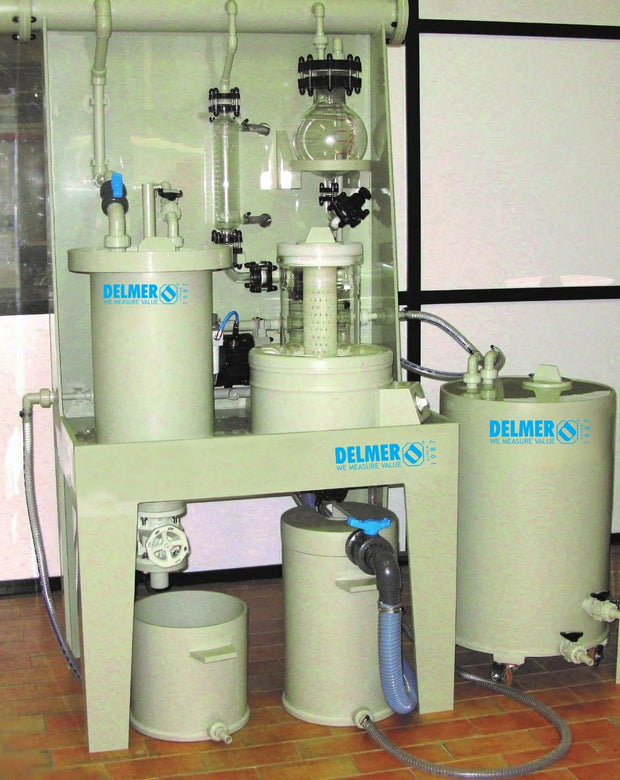

The process takes place inside a work tank which is placed strictly under the hood and under suction, housed also on the upper floor of the building structure. This will allow, with some modifications, to discharge the liquid of the saturated solutions, inside the crystallization system, which will be placed under them and therefore on the lower level. This crystallizer is wheeled and equipped with a Buckner filter for collecting gold salt.

The work tank will also be equipped with a movable lid, with tilting opening and connected separately to a reflux head in glass, for the condensation of the produced vapors, which will consequently be directed inside the tank to which they are bound. This system avoids decreases in volume in the tank and therefore negative variations in the concentration of the salt in solution, thus automatically guaranteeing the right final title.

Downstream of the process, a liquid treatment system is envisaged for immediate recovery of the residual gold.

Now a days e waste materials are resulting into heavy pollution that can be harmful. But we at delmer are converting the e waste into a useful products.. we are recycling the e waste and producing mining machines which help you the mine the gold. They are made of super quality with less pricing which can be affordable for all

Increasing global technological development has immensely resulted into enhancing production of electronic waste that creates the challenges and opportunities in its recycling. In this review, we focus on the core value of metal resources in the printed circuit boards usually found in end-of-life electronics, the differences between primary mining applications and secondary mining, and the variety of metallurgical separations, in particular those that have the potential to selectively and sustainably recover gold from waste PCBs. It’s a very reliable and sustainable method which can be very useful for electronic waste and can result into a beneficial product

We at delmer provide these products which can to decrease the pollution and can be beneficial to customers.

"THE BENEFITS OF RECYCLING TECHNOLOGICAL WASTE According to research and facts , it is 13 times more costly to extract minerals from natural deposits than it is to recover them from technological waste for the manufacture of new devices. Obtaining minerals like platinum, copper and palladium does not just involve digging them up and processing them, it also requires the use of huge quantities of water and energy. This is where the concept of the circular economy comes in, based on the use of materials from recycled items and less dependence on the virgin resources extraction."

We supply you with all technical machines required for the equipping of your analytical laboratory. We cover the whole process chain with our high quality components. Your advantage: you have a competent partner for all your laboratory technology and can benefit from our reliable service.

The ""ETNA"" line includes a variety of continuous casting furnaces with crucible capacities ranging from 10 to 140 kg. A graphical interface and display assist the user in his task. A tubular frame and movable panel secure access to the machine body for simple maintenance. The profile drive system is made of aluminum, is fully cooled, and is powered by a stepper motor coupled to a planetary gear; it should be integrated with the casting chamber.

All of this system is closed by an easily removable cover: entry to melting equipment (Ceramic jacket, chain bushings, thermocouples) is very quick, minimizing replacement time. The cooling socket has been enhanced in accordance with the equipment so that The cooling socket has been refined in tandem with the equipment to provide the best potential performance.

The machine's heart is a mid-frequency system designed and constructed entirely by the Technical Opdel. These furnaces are frequently used for special profiles requiring a large quantity of metal to be melted. It can use accessories such as shears or saws to trim profiles and trays to cool them. In some cases, an additional tilting head can directly fill the empty crucible with liquid metal to minimize production slowdown.

This oven has been specifically designed for the annealing of gypsums in the production process of casting precious alloys.

The particular design, the special construction features and the tested work cycle make it an innovative and precise tool that offers the customer the possibility to achieve the objectives described below:

absolute homogeneity in the internal temperature, which determines a considerable improvement in the baking of the gypsum, with a maximum temperature of 850 ° C, on request up to 1000 ° C.

accuration in the insertion of the cylinders-molds, ease in the internal cleaning.

cooking process controlled by a touch panel, complete with:

management of the automatic opening and closing of the fireplace during the cooking cycle _management of a resistance in the wax drainage pipe, which avoids the formation of plugs

air insertion management to increase combustion, excellent for wax processing _ management of a forced cooling to decrease the cooling time.

Technical Data

Hardening alloys furnace on inert atmosphere DHF.

A FURNACE FOR HARDENING ALLOYS ON AN INERT ATMOSPHERE DHF.
This facility was created specifically to harden alloys used in jewellery manufacturing.

It is a creative and precise instrument that allows the client the chance to accomplish the following goals thanks to its unique design, unique construction features, and tried-and-true work cycle.

It's a good idea to have a backup plan just in case.
during the polishing process, superior results.
make sure the treated parts' colours stay consistent and don't oxidise.
For each unique type of alloy, perfect automatic execution of the hardness is achieved.
The goods may be placed on stainless steel trays with perforations.

Specifications:

The Automatic Melting Furnace was designed to be a safe and easy-to use electrical method for melting gold, silver and other non-ferrous metals for casting and ingot-pouring applications. It offers precise control of melting temperatures up to 1120°C (2028 °F) through its user friendly, easily programmable controller with LED display.It comes with special kanthal heating element which gives higher operating temperature range and longer life. The glass wool insulated lid holds in heat and keeps oxygen out for a cleaner melt.

Specification of Product:

Technical details:

WHAT IS AN ELECTRIC FURNACE ?

An electric furnace is a device whcih generates heat due to the resistance offered to the passage of current that is passed through it.

The furnace provided by us is of indirect heating type, which implies there is no contact between the heating element ( we use high quality & long lasting kanthal heating element ) and the crucible.

HOW DOES IT WORK ?

When you put the power on of the furnace , the current passes through the kanthal coil and heat is generated due to ohmic resistance and the coil becomes red hot ; This heat is transferred to the crucible by radiation which melts the material that is inside the crucible.

 BENEFITS YOU GET :

• [ PRECISE TEMPERATURE CONTROL ] Highly advance digital control system combined with K-Type thermocouple, monitors the real time chamber temperature and make sure it doesnot overheat or cooldown providing you with precise and convenient melting.
• [ LONGER LASTING HEATING ELEMENT ] High quality Kanthal coil which can withstand high temperature  uptp 1450°C and higher heating cycle . this is your term partner.
• [ QUICK MELTING ] the furnace comes with an insulation lid which resists the heat from escaping and easily melts your metal without any contamination.
• [ PORTABLE ] This machine is very compact and weighs only 8kgs , providing you the freedom of moving it wherever you like.
• [ 6 IN 1 SET ] The package comes with heat resistance gloves ,safety glasses for your safety ; tong and high quality graphite crucible with collar for easy handling and minimal contamination of the melt.
• [ EASY TO OPERATE AND MAINTAIN ] The furnace is so designed , it is extremely easy to set the parameters and operate and requires minimal or no maintenance.

HOW TO OPERATE :

1. Pick an appropriate and safe working space to operate the furnace. Make it certain that the area in which you are working is madeup of incombustible material that won't catch fire in the event of liquid metal spill.

2. Make sure there is safe distance of atleast 24 inch between the furnace and any combustible material or item that maybe present in the immediate surrounding.
3. Put the crucible into the furnace chamber and make sure the crucible is touching the thermocouple properly.
4. Add the material to be melted into the crucible(add Flux if required).
5. Close the lid properly.
6. Plug in the furnace into the 220V AC power supply.
7. Turn on the green coloured ON/OFF button on the furnace (Green coloured light should be lit).
8. For setting the temperature, Press the square button on the temperature controller, keeping it pressed press the up /down button to adjust it according to your requirement and then release.
9. When the metal is melt turn off the green button.
10. Take out the crucible from the furnace with help of a tong.

    ( NOTE:- Always wear safety glasses, gloves and safety shoes for your safety )
