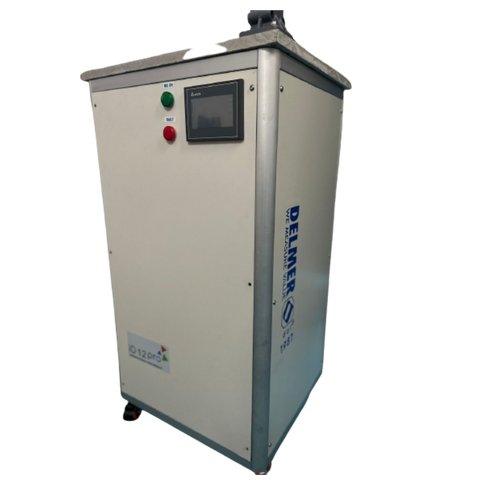

Delmer iD pro series Induction furnace (static type) for Gold, Silver & Copper

₹612,740.70 Save Liquid error (snippets/product-template line 116): Computation results in '-Infinity'%
10 in stock
  • Description
  • Ask a question
  • Review

Two categories can be used to categorize the latest generation of static induction furnaces: iD Plus and iD .The iD series incorporates a straightforward digital thermostat that lets you set the metal melting temperature and view the actual one.

The iD Plus series has a touch screen panel that enables the user to choose from a variety of parameters, including various ways to read temperatures, including a standard "K" thermocouple at the bottom of the crucible, thermocouples that are externally mounted (either "S" or "K"), or an optical pyrometer.

These are an option that may be used. The latest generation circuit has power and control equipped with SMD technology, which could achieve more profitable and faster duty cycles than previous systems, where the crucible wore out. New is the single-phase 230 V power supply of the ST123 model, whose special feature is the possibility of using 1kg, 2kg and 3kg crucibles, without disturbing the parameters of the oven.

An interesting option is the machine-aligned casting vacuum, which allows you to make a wax stand right next to the oven.

Tecnical Details

MOD

iD123

iD04

iD05

iD10

iD12

iD18

Overall Dimension

mm

470X510X920

520X 560 X970

Weight

kg

63

66

66

71

71

78

Crucible                Au 750

kg

2,8

4,8

6,1

12

13,5

15

Capacity               Ag 925

1,9

3,2

4,1

8,1

9,2

10,2

Max Temparature

oc

1150

(1600 Optional w ith Optica l Pyrometer)

Min. Water Flow

I/min

4

I   Install Power

kW

3,5

6

7

11

12

15

Power Supply

Vo lt

230

3x400

3x230

3x400

3x 230

3 x400

POWER

kW

3

5,5

6,5

10

11

14

FREQUENCY

Start of machine

operation to reach

Set Temperature

kHz

20 ±7,5%

20 ±7,5%

20 ±7,5%

20 ±7,5%

20 ±7,5%

20 ±7,5%

Radiate Power

w

< 5

<5

<5

<5

<5

< 5

POWER

kW

0,2

0,2

0,2

0,2

0,2

0,2

FREQUENCY>

Maintaining

Set Temperature

kHz

32 ±7,5%

32 ±7,5%

32 ±7,5%

32 ±7,5%

32 ±7,5%

32 ±7,5%

Radiate Power

w

< 5

< 5

<5

< 5

< 5

< 5

Termocouple Position

Under Crucible

Cruc ible type

With Fixed Ceramic Jacket

Temperature Control

Digital Thermoregulator

Optional

External thermocoup le w ith support

Optional

Optical Pyrometer w ith support ( 1600°C)

Optional

Gas Burner

Optional

Cylinder Microcasting Chamber

Max Cylinder Dimension mm 0120x320h
