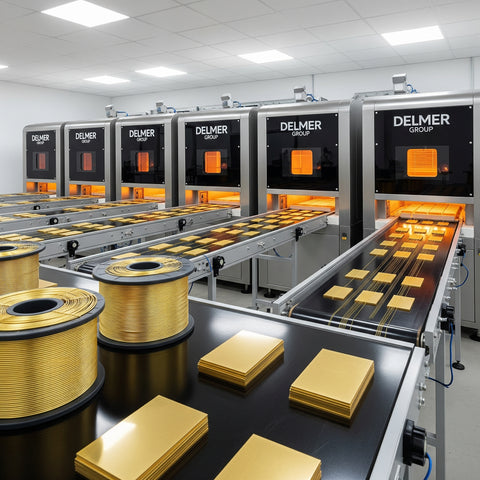

Delmer belt annealing furnace for continuous industrial heat treatment

Delmer Continuous Belt Annealing Furnace for Jewellery

Regular price ₹4,884,786.00
9 in stock

The Delmer Continuous Belt Annealing Furnace for Jewellery Chain Heat Treatment is designed for continuous thermal processing in jewellery manufacturing and compatible metalworking applications.

The furnace range includes model-dependent heating-zone arrangements, a belt-conveying system, heating and cooling sections, and options for controlled process atmospheres. Configuration and compatibility should be confirmed against the intended material, workpiece dimensions, required process temperature, production throughput, atmosphere requirements and available utilities.

Applications

  • Jewellery chains: continuous annealing and heat treatment, subject to confirmation of alloy and process requirements.
  • Coin blanks: potential annealing application where workpiece dimensions and production requirements match the selected configuration.
  • Metal plates and wires: potential stress-relief and annealing applications, subject to material and process validation.

Construction and process features

The existing design description identifies heating chambers with separate heating zones, a belt transport arrangement, a cooling chamber and provision for process gas. Optional accessories listed for the range include chain guides, gas mixing and regulation components, and an ammonia dissociator. Confirm availability and compatibility for the selected model before ordering.

Models and technical specifications

Available model names shown in the current specification are bD 020, bD 030, bD 040 and bD 050. The technical table should be used only after confirming the dimensions, weight, electrical power, maximum temperature, chamber dimensions, heating-zone length, cooling section and atmosphere flow for the selected model with Delmer.

Request a configuration-specific quotation

To help Delmer recommend a suitable configuration, provide the material/alloy, workpiece type and dimensions, target process temperature, required throughput, atmosphere requirements, electrical supply and installation country. Delmer can then confirm the suitable model, options, utilities and quotation.
