Cupellation Furnace (Del DSC)

Prezzo regolare ₹522,636.00 Salva Liquid error (snippets/product-template line 124): Computation results in '-Infinity'%
5 in magazzino

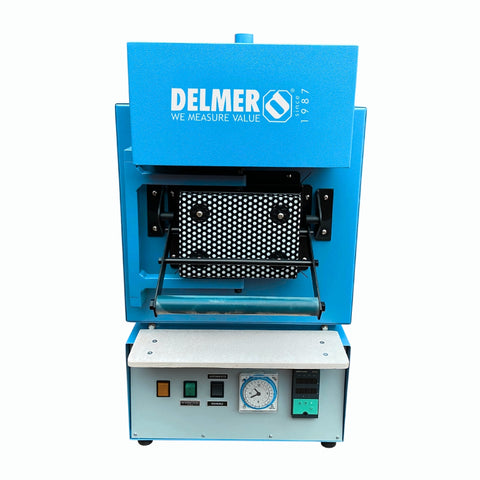

The Del DSC Electric Muffle Furnace is purpose-built for the goldsmith and precious metal refining industry, ensuring high precision and efficiency in cupellation—the essential process of refining and separating noble metals like gold and silver from base metals.

This advanced furnace features a removable carborundum muffle with a capacity of up to 12 cupels, integrated with a suction hood for effective vapor extraction. It comes equipped with a digital thermoregulator, a durable cupel support shelf, and an optional programmable timer (daily or weekly) for automated on/off operation.

Engineered for consistency, safety, and convenience, the Del DSC is an ideal solution for professional refining and assaying applications.

Key Features

  • Removable Carborundum Muffle – Holds up to 12 cupels
  • Integrated Suction Hood – Safe and efficient vapor removal
  • Digital Thermoregulator – Accurate temperature control
  • Optional Timer – For automated daily or weekly operation
  • Compact and Durable Design – Built for long-term professional use


Technical Specifications

Category Details
Electrical Data
Voltage 230 V (Single-phase)
Frequencye 50–60 Hz
Wattage 2.5 kW
Maximum Temperature 1150°C
Oven Chamber Dimensions
Depth 250 mm
Width 145 mm
Height 100 mm
Carborundum Muffle Dimensions
Depth 230 mm
Width 125 mm
Height 75 mm
Overall Furnace Dimensions
Depth 650 mm
Width 400 mm
Height 750 mm
Weight 65 kg


Applications

  • Gold & silver refining using the cupellation process
  • Assaying laboratories for purity analysis
  • Jewelry manufacturing
  • Industrial precious metal separation
