Cupellation Furnace (Del D-C )

Prezzo regolare ₹563,438.00 Salva Liquid error (snippets/product-template line 124): Computation results in '-Infinity'%
5 in magazzino

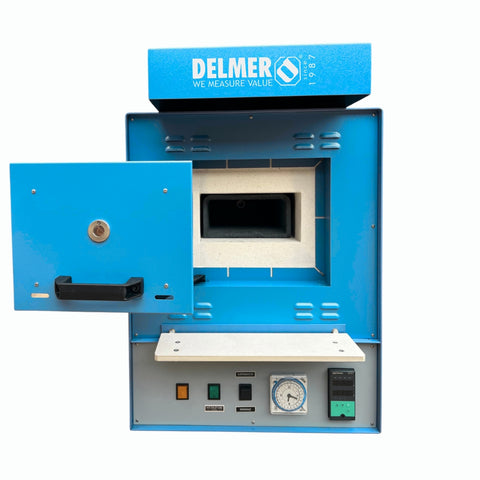

The Del D-C Electric Muffle Furnace is built for professionals in the goldsmith and precious metals industry, delivering high performance for cupellation—the process of refining and separating noble metals like gold and silver from base metals.

It features a removable carborundum muffle (up to 18 cupels capacity), an integrated suction hood for safe vapour removal, and a digital thermoregulator for accurate temperature control. An optional daily/weekly programmable timer allows automated operations, making it efficient, durable, and user-friendly for refining and assaying processes.


Key Features

  • Removable Carborundum Muffle for easy handling
  • Integrated Suction Hood for safe vapour removal
  • Digital Thermoregulator for precision temperature control
  • Optional Timer for daily or weekly automatic operations
  • Robust & Energy-Efficient Design


Technical Specifications

Category Details
Electrical Data
Voltage 230 V (Single-phase)
Frequency 50–60 Hz
Wattage 3.9 kW
Maximum Temperature 1150°C
Oven Chamber Dimensions
Depth 250 mm
Width 210 mm
Height 115 mm
Carborundum Muffle Dimensions
Depth 230 mm
Width 170 mm
Height 75 mm
Overall Furnace Dimensions
Depth 750 mm
Width 485 mm
Height 820 mm


Applications

  • Gold & silver refining (Cupellation process)
  • Assaying laboratories
  • Jewelry manufacturing units
  • Industrial precious metal recovery
